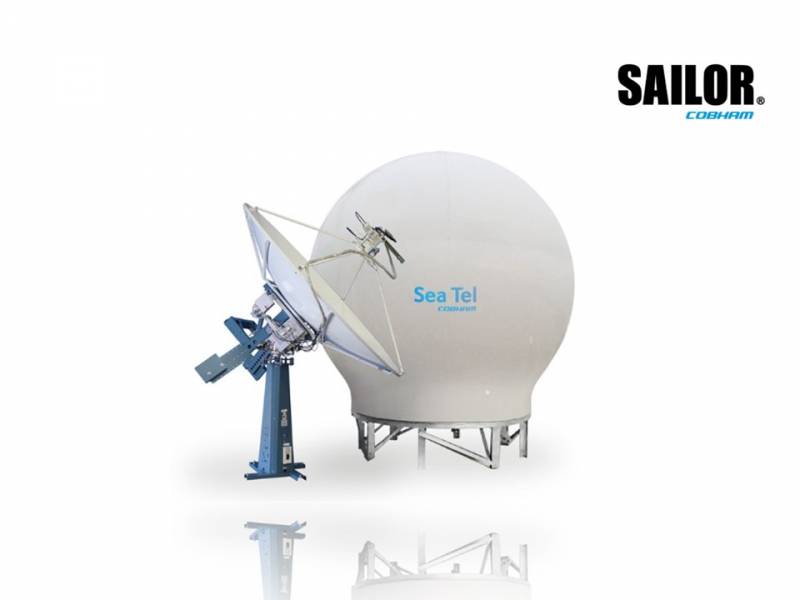

Sea Tel 240 TV, C/Ku, 144 In

Themys part number : /
Cobham part number : 40-360500-00100A


The Sea Tel 240 TV is Cobham SATCOM’s latest top-of-the-line, 2.4 (94”) TV-at-Sea™
system. The reflector, radome design, and RF components are based on our well proven Sea Tel ST94 system, while the stabilization platform has been updated to integrate our IMA Platform. It is the preferred system for users who need the largest possible offshore operating area and compatibility with all known and planned satellites. The Sea Tel 240 TV has undergone major tracking, reliability, stability and industry leading improvements and is the antenna of choice for large vessels operating in deep oceans.

Proven technology, even simpler
The Sea Tel 240 TV has reliable and proven IMA electronics have a host of improvements for improved productivity. These include: LED indicators for troubleshooting, USB port for Bluetooth adaptor and digital control interface between the motor driver and integrated ICU for improved tracking and system communications. The level cage used in the predecessor systems has also been replaced by high accuracy accelerometers.
This allows for continuous calculation of position, orientation and velocity vector of a moving object without the need for external references. The micro-electromechanical (MEM) sensors used in Sea Tel’s antennas are based on the same technology currently being used in missile and aerospace technology around the world.

Included in system :

• LITE MEDIA EXCHANGE POINT (LMXP) w/ DISPLAY
• BELOW DECKS ACCESSORY BOX

Included Above Decks Equipment:

• 2.4 M REFLECTOR
• 240 TV GENERAL ASSEMBLY
• LNB PN: 80-207545-000, LNB, C-Band, PLL, NORSAT 5150RF (Qty 2)
• LNB PN: 88-207953-050, LNB, DUAL F, SMW LO 9.75/10.6 GHz, 50dB GAIN,10MHz (Qty 2)
• NO RADOME INCLUDED

* RF Cable Package not included
